Total Time Since New 1,427 Hours (as of July 2023)
Total Landings Since New 542 Landings
Entry into Service Date December 2017
Home Base Texas, United States
Program Coverage Bombardier Smart Parts Preferred
Maintenance Tracking CAMP

DESCRIPTION HONEYWELL GTCP36-150
APU SERIAL NUMBER P-509
APU TOTAL TIME SINCE NEW 1,171 HOURS
PROGRAM COVERAGE HONEYWELL MSP GOLD

Left Engine Right Engine
Description General Electric CF34-3B
Engine Serial Numbers 801479 801480
Total Hours Since New 1,427 Hours 1,4727 Hours
Total Cycles Since New 552 Cycles 552 Cycles
Program Coverage GE OnPoint

The Bombardier Challenger 650 is equipped with an integrated, Rockwell Collins Pro Line 21 Advanced avionics suite. A general summary of this aircraft’s avionics suite is as follows:

Type of Unit Quantity Unit Description
EFIS (Electronic Flight Instrument System) Quad Collins AFD-5220E
FMS (Flight Management System) Triple Collins FMC-6200
IRS (Inertial Reference System) Triple Honeywell
GPS (Global Positioning System) Dual Collins GPS-4000S
ADC (Air Data Computer) Dual Collins ADC-850E
NAV (Navigation Radio) Dual Collins NAV-4000
SVS (Synthetic Vision System) Single Collins SVC-3000
VHF COM (Very High Freq. Communications) Triple Collins VHF-4000
HF COM (High Freq. Communications) Dual Collins HF-9031A
SATCOM (Satellite Communications) Single Collins SDU-2200
WRADAR (Weather Radar) Single Collins RTA-4114
XPNDR (Transponder) Single Collins TDR-94D
TSS (Traffic Surveillance System) Single Collins TSS-4100
EGPWS (Enhanced Ground Proximity Warning System) Single Honeywell Mark V
CVR (Cockpit Voice Recorder) Single L3 Harris FA2100
FDR (Flight Data Recorder) Single L3 Harris FA2100
ELT (Emergency Locator Transmitter) Single Artex C406-N

NOTABLE AVIONICS SERVICE BULLETINS
SB650-23-008 – Future Air Navigation System (FANS) Upload of Encryption Key
SB650-23-008 – Upgrade the Datalink System to Meet Link 2000+
SB650-23-002 – Installation of the Datalink System
SB650-23-001 – Installation of the 3rd VHF
SB650-31-001 – Flight Data Recording – FAR 135 Enhancement Package
SB650-34-001 – Modification – Third Flight Management System Installation
SB604-34-004 – Third Inertial Reference System (IRS) Installation

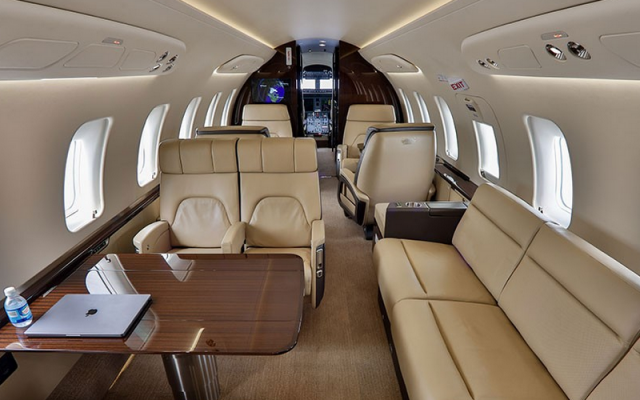

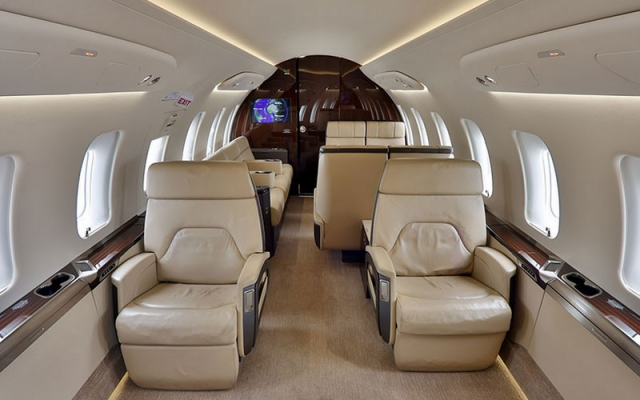

Number of Passengers Twelve (12)

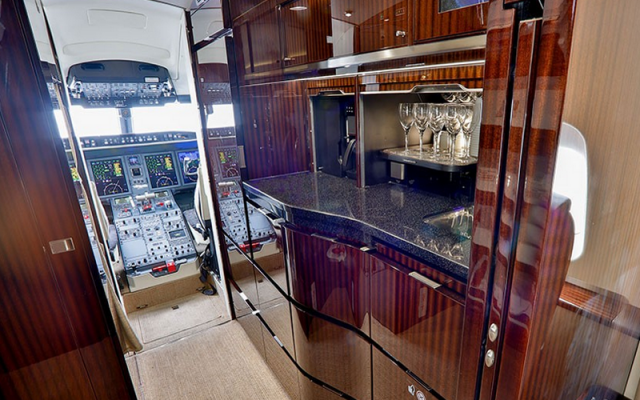

Galley Location Forward
Forward Cabin Configuration Four (4) Place Double Club
Aft Cabin Configuration Four (4) Place Conference Group Opposite a Four (4) Place Divan
Lavatory Location Aft Executive
Last Refurbishment Carpet and Divan May 2020

Base Paint Color(s) White
Stripe(s) Blue and Red
Last Refurbishment Tail and Striping in June 2020
