Imported in Italy in 1988

Well maintained and hangared Arrow

Under CAMO

Serial Number: 28R-7931095
Previous Registration: N500DS

TT: 3510 hrs

Engine Continental TSIO-360-FB1A, S/N: 211843
TT: 3510
TSOH: 1774
Prop Strike occurred in 2021.
Engine Shock Load Inspection completed at Engine TSOH: 1469 (305 hours ago!)
Engine overhauled: in 2018
TBO: 1800 hours
With 10% tolerance extension, there are around 206 hours left to the TBO

MT Propeller 3 Bladed Composite Blades, MTV-2-D188-30D, S/N: 211843
TT: 305 hrs
Installed new 30/01/2018
Woodward Governor installed with the new propeller 30/01/2018

Red velour with black side inserts, red carpet
All 4 seats equipped with headrest
Front adjustable seats
Shoulder Harness Seat Belts
Original, in good condition

Original Piper design
Juneau White
Matador Red Trim
Las Vegas Gold Accents
Good condition

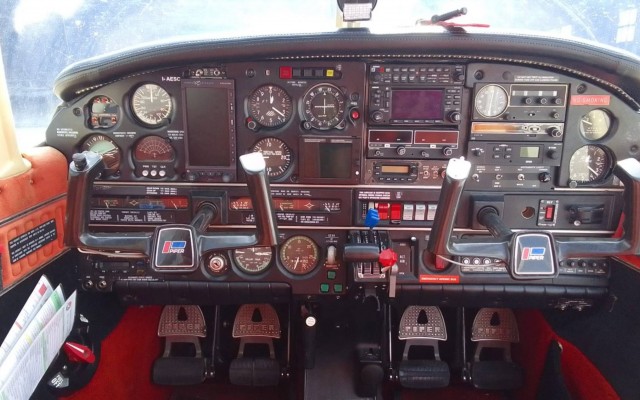

Garmin GMA340 Audio Panel / Marker Beacon / Intercom
Garmin GNS430 WAAS NAV-COM-GPS
Aspen EFD1000 Primary Function Display / HSI, Isntalled in 2022
MD41-14B4 Annunciator Panel
Avionics International Supply AIS80-1 CDI Switch Unit
King KX155 NAV-COM
King KI209 VOR LOC-Glide-Slope Indicator
King KN62A DME
King KR86 ADF
Becker BX6403-2 Mode S Transponder
ACK A30 Mod 3 Blind Encoder
Altimatic Autocontrol IIIB Autopilot
Electric Pitch Trim
S-TEC 60 Pitch Trib Stab. STC SA5110SW-D
S-TEC Selector Alerter Panel
WX8 Storm Scope
True Speed Indicator
Second Attitude Indicator
Co-Pilot Altimeter
Astro Tech Digital Clock/OAT Indicator
Kannad 406 AF Compact ELT with Remote Switch, Installed 07/09/2012
2 LED Stripes Glareshield Panel Lights

Optional engine priming system
Auxiliary power receptacle
Heated pitot
Vacuum System (21CC Vacuum Pump)
Anti Collision Strobe lights
Shoulder Harness Seat Belts
Cabin fire extinguisher
First aid kit

MTOW: 2900 LBS (/1315 kg)
Empty Weight: 1872 LBS (849 kg)

Propeller Strike occurred in 2021, after that engine had a shock load inspection and propeller was replaced with new MT 3 Bladed Propeller

Annual inspection completed 31/05/2023

Price with overhauled engine: Euro 188,000.00

Specifications subject to verification by purchaser
