HIGHLIGHTS
Fresh Engine OH
Single/Dual Pilot VFR
EMS Interior
One Owner Since New
Located in the US

Engine 1 Serial Number - PU0158
Engine 1 Time - 4,816 SNEW

BLT C406-2HM Artex
ICS NAT Dual Pilot AA95 Controllers + one AA95 Controller for EMS Cabin
Radio Altimeter (TRA 3500, TRI 40)
SkyConnect satellite tracking system with Sat phone
Skywatch Traffic Advisory System SKY 497
FM System Cabin 2nd Unit RC 6148
FM System TDFM 6148 VHF High (138-174 MHZ)+ UHF (400-470 MHZ) 800 MHZ
Garmin GNS 530W
Garmin GFC 250
Garmin GTX335 Transponder (mode S) KT-70 Bendix/King with ADS-B out
AFCS 3-axis duplex SP-711 Honeywell
ADF KR-87 Bendix/King
Gyrocompass C14A Honeywell
JCS pilot AG-06-lU Agusta/Gemelli
Pilot navigation instruments (including ADI & HSI)
VHF-COM/GPS 250XL Garmin

EQUIPMENT
Shoreline power 1000 W inverter with aux power in cabin
NVG Compatible Alternative Lighting Fuel flow meter
Mounts
- Defibrillator
- Infusion Pump
- Ventilator
Central Warning System Position lights
250 W landing lights (2) Anti collision lights (2) Cockpit utility lights (2) Instrument lights with dimming switch
Air Conditioner Vapor Cycle System
3-cell fuel system (605 1- 160 USG)
Reinforced skid type landing gear
Two hinged jettisonable crew doors (LH & RH)
Two sliding passenger doors (LH and RH), 1.10m opening, with jettisonable windows
Acrylic windshield and side windows
Acrylic overhead windows
Reinforced Windshield (pilot and co-pilot)
Baggage Compartment Extension (1.9m)
AC power supply system (2 inverters)
Aero Dynamics NVG System
Four composite blades
Fully articulated main rotor with four composite grips
Pulsed chip detectors
Engine inlet barrier filter
Search Light Super Nightscanner
Cargo Hook and Hoist Provisions

White/Blue/Maroon Metallic Exterior Paint

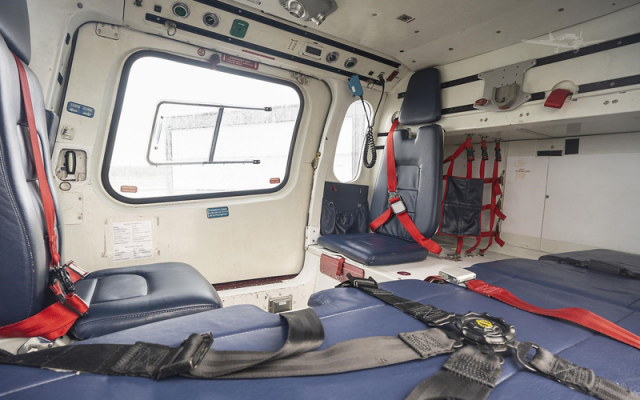

INTERIOR
2 passenger, 2 crew
Sliding door (RH)
Sliding door (LH)
AC

LEONARDO EMS INTERIOR 1. SINGLE/DUAL STRETCHER - FIXED PARTS
Head liner with soundproofing and EMS provisions
Side liners LH and RH with EMS provisions
Aft EMS liners with rails
Bench panels with rear EMS provisions
Stretcher platform provision
Cargo net provisions
Floor equipped with rails and EMS provisions
EMS electrical system and outlets (12 V DC / 28 V DC)
3rd ICS station in passenger cabin
Medical oxygen system provision (single bottle)
Sliders on passenger cabin doors windows
Co-pilot reversible seat (in lieu of standard seat)

LEONARDO EMS INTERIOR 2. SINGLE STRETCHER INSTALLATION - REMOVABLE PARTS
Storage compartment
Primary stretcher platform with front lock mechanism
Primary stretcher (Qty 1)
Interior cargo net
Seats and stretcher covered with leatherette
Aft facing sliding/rotating seat
Foldable fwd facing seats with headrests (Qty 2)
3-point shoulder harness with inertial reels and safety-belts for passenger seats

LEONARDO EMS INTERIOR
Bleed Air Heater, Primer Finished Cabin Walls, Two Individual Pilot Seats, fore and aft adjustable, with lab belts and headrests
Aluminum Alloy Honeycomb reinforced floor with anti-skid finishing
Ventilation Ram Air Inlets
Anti-reflection instrument panel
Separation curtain cockpit/cabin

Aircraft Location: Dinwiddie, Virginia
