From US $3260 / Piece
Selling. New
Agricultural Plant Protection UAV HBR T16
Quadcopter Hongfei Aviation Technology
Description
The company's main products: agricultural drones, inspection drones, firefighting drones, rescue/transportation drones, large drone platforms, etc.
Feature Function
• Efficiency of 6~8 Ha/H spraying

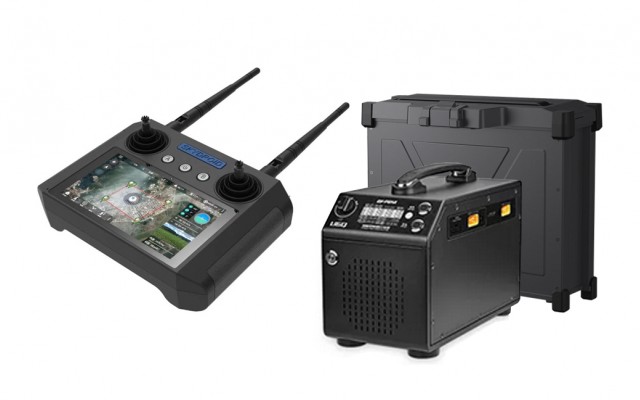

• High power charger can connect 2 batteries at the same time, one battery can be full from 30% in 20 minutes
• The waterproof rating of the drone body is IP67, which can be cleaned with running water after operation
• FPV allows users to see real-time images of the environment in front of the drone on a remote control display
Carbon fiber body, high strength and light weight, high pressure nozzle penetration, durable and longlasting.
Standard GPS positioning, optional RTK to achieve centimeter-level positioning.
Ground-like radar, with the terrain to adjust the flight slope to ensure flight safety.
Basic parameters:
• Product material - Aviation carbon fiber aviation aluminum
• Water pump - Double brushless DC electric pump
• Nozzle - High pressure Atomization Nozzle
• Battery - 14S 20000mAh * 1 60.9V (fully charged)
Feature Function
• Efficiency of 6~8 Ha/H spraying
• High power charger can connect 2 batteries at the same time, one battery can be full from 30% in 20 minutes
• The waterproof rating of the drone body is IP67, which can be cleaned with running water after operation
• FPV allows users to see real-time images of the environment in front of the drone on a remote control display
Carbon fiber body, high strength and light weight, high pressure nozzle penetration, durable and longlasting.
Standard GPS positioning, optional RTK to achieve centimeter-level positioning.
Ground-like radar, with the terrain to adjust the flight slope to ensure flight safety.
Basic parameters:
• Product material - Aviation carbon fiber aviation aluminum
• Water pump - Double brushless DC electric pump
• Nozzle - High pressure Atomization Nozzle
• Battery - 14S 20000mAh * 1 60.9V (fully charged)
Characteristics
Expand size
2010mm * 1980mm * 750mm
Package size
1300*1300 * 750mm
Maximum takeoff weight
38KG
Aircraft weight
15KG
Agricultural drug keg
16L
Maximum flight height
30m
Maximum wind resistance
8 m/s
Hover time
20min (no load)
Maximum flight speed
10 m/s
Maximum working speed
8 m/s
Flow rate
6~ 10L/min
Spraying efficiency
6~8 ha/hours
Spray width
6~10m
Drop size
110~400μ m
Battery cycle
1000Cycle
Charger
TwoChannel smart charger
Charging time
15~20min (30%-95%)
