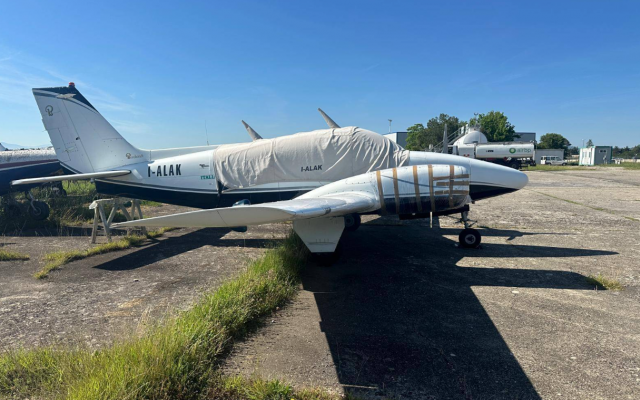

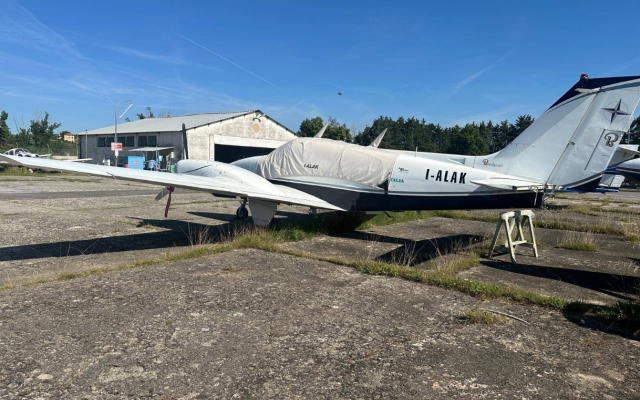

Private aircraft

Requires:
- Right engine repair, overhaul or replacement due to metal contamination
- Annual inspection
Work estimate from local maintenance shop around 39,000 Euro plus VAT

Additionally required:
- Elevators replacement or reskinning

Serial Number:TC-1218

TT: 3698

Engines:
Continental IO-470-L15B, SN CS-91034-3L and CS-91692-4L
TSOH: 1010
Overhauled: 09/2002
Major Repair performed 24/10/2006
Time since Major Repair: 308 hours
TBO: 1500 hours

Left engine, replaced all 6 cylinders with new ones in 2022 at 3678 hours

Propellers:
Hartzell PHC-C3YF-2UF/FC7663-2, SN EB5507B and EB55$4B
TSOH: 491 hours
Last Overhaul: 05/2016
TBO: 72 Months / 2400 Hours

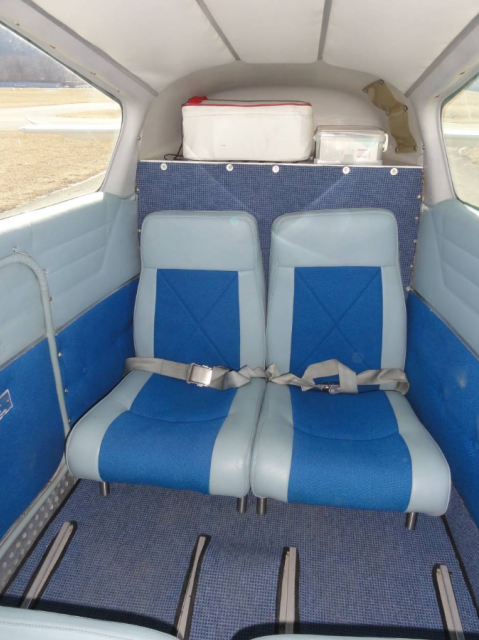

Blue fabric and light blue leather
6 seats

White and blue

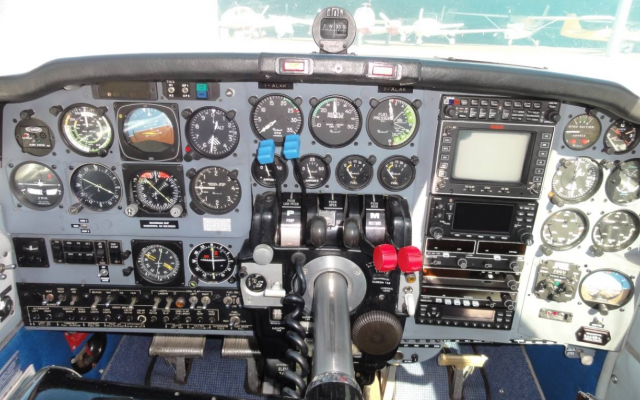

Garmin GNS430 WAAS NAV/COM/GPS
King KX165 NAV-COM, NAV VOR LOC and Glide Slope Indicator
King Flight Director
King KCS55 HSI KI525A Indicator
Garmin 340 Audio Panel / Marker Beacon
Garmin GTX330 Mode S Transponder
King KN62 DME
King KR87 ADF
King TDR90 Transponder C
Copilot Altimeter
Copilot Attitude Indicator
Copilot Push To Talk Panel Switch
King KC295 Autopilot with Yaw Damper and Altitude Hold
Kannad 406AF Compact ELT with Panel Switch
Sperry RT3002 Color Weather Radar with AP-3001 Antenna (Currently Inoperative)
Narco AR850 Encoder
Sandia SAE5-35 Encoder
Carbon Monoxide Detector
Failed Engine Annunciator

Hourmeter

2 new Garmin G5 Indicators, not installed

2 new Garmin G5 Indicators, not installed

Radar Radome
Dual control yoke
3 Bladed propeller
1 Piece windshield
F&M 1.1. Oil filter adapters
Cabin fire extinguisher
Aircraft Cover, for windows area
Tow Bar

136 USG Total Fuel Capacity
MTOW: 2313 Kg, 5100 LBS
All fuel cells replaced in 2014

Specifications subject to verification by purchaser
