US $6510 / Piece
Selling. New

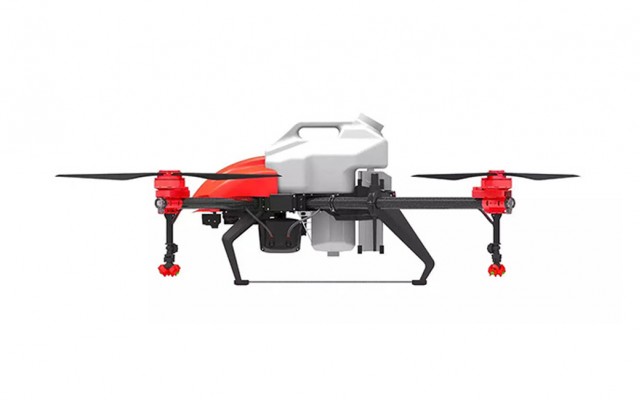

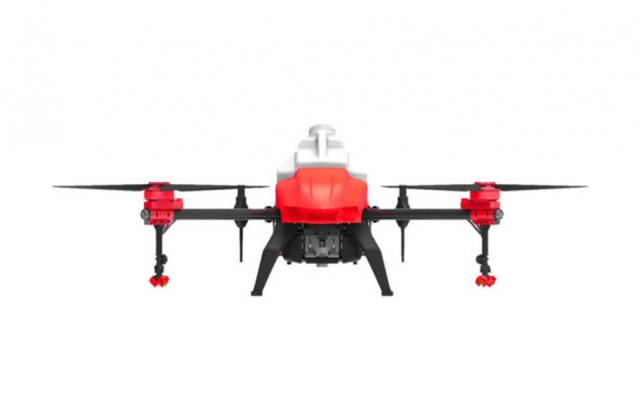

Agricultural Plant Protection UAV HBR T25
Quadcopter Hongfei Aviation Technology
Description
The company's main products: agricultural drones, inspection drones, firefighting drones, rescue/transportation drones, large drone platforms, etc.
Feature Function

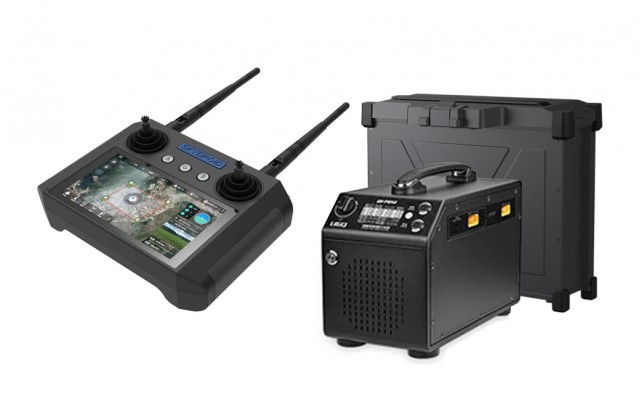

• Efficiency of 10~12 Ha/H spraying • High power charger can connect 2 batteries at the same time, one battery can be full from 30% in 20 minutes • The waterproof rating of the drone body is IP67, which can be cleaned with running water after operation • FPV allows users to see real-time images of the environment in front of the drone on a remote control display
Carbon fiber body, high strength and light weight, high pressure nozzle penetration, durable and longlasting.
Standard GPS positioning, optional RTK to achieve centimeter-level positioning.
Optional spreading device can be installed to realize the function of spreading fertilizer and sowing seeds.
Basic parameters:
• Product material - Aviation carbon fiber aviation aluminum
• Water pump - Double brushless DC electric pump
• Nozzle - High pressure Atomization Nozzle
• Battery - 14S 20000mAh * 1 60.9V (fully charged)
Feature Function
• Efficiency of 10~12 Ha/H spraying • High power charger can connect 2 batteries at the same time, one battery can be full from 30% in 20 minutes • The waterproof rating of the drone body is IP67, which can be cleaned with running water after operation • FPV allows users to see real-time images of the environment in front of the drone on a remote control display
Carbon fiber body, high strength and light weight, high pressure nozzle penetration, durable and longlasting.
Standard GPS positioning, optional RTK to achieve centimeter-level positioning.
Optional spreading device can be installed to realize the function of spreading fertilizer and sowing seeds.
Basic parameters:
• Product material - Aviation carbon fiber aviation aluminum
• Water pump - Double brushless DC electric pump
• Nozzle - High pressure Atomization Nozzle
• Battery - 14S 20000mAh * 1 60.9V (fully charged)
Characteristics
Expand size
2010mm * 1980mm * 750mm
Package size
1300*1300 * 750mm
Maximum takeoff weight
51KG
Aircraft weight
16KG
Agricultural drug keg
25L
Maximum flight height
30m
Maximum wind resistance
8 m/s
Hover time
20min (no load)
Maximum flight speed
10 m/s
Maximum working speed
8 m/s
Flow rate
6~10L/min
Spraying efficiency
10~12ha/hours
Spray width
4~8m
Drop size
110~400μ m
Battery cycle
1000 Cycle
Charger
TwoChannel smart charger
Charging time
15~20min (30%-95%)
