ID: 396
From €813.40
Selling. New
Trailer Drawer
Glider Accessory Shop
Description

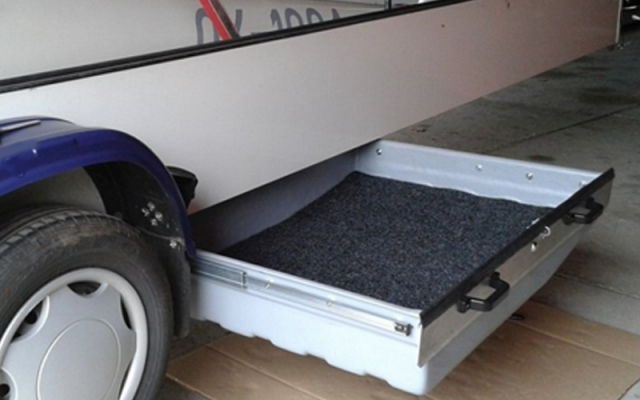

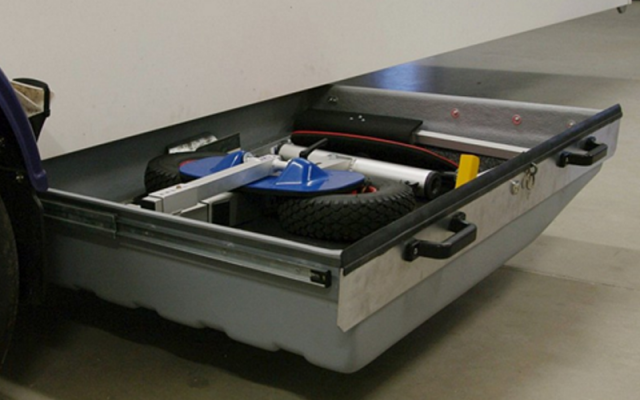

IMI Trailer Drawer for storing of equipment available now as a retrofit kit for all modern or older sailplane trailers. One man rigging system, Tow bar, Wing supports or other equipment can be stored and transported in the lockable splashwater- and dustproof drawer which is attached on the left side of the trailer behind the axle, close to the center of gravity. The drawer significantly improves the storing possibilities of every trailer. The drawer is bolted to the trailer by solid and robust aluminium frame with solid double ball-bearing telescopic rails.

The fiberglass drawer itself is completelly sealed by Pirelli rubber profiles against moisture, splashwater and dust. The drawer comes very smoothly and almost completelly out at the telescopic rails (75cm travel by 82cm depth), what makes loading and unloading of the stored equipment very comfortable. The drawer with frame is attached to the bottom of the trailer (sandwich floor or cantilever profile frame) by 9pcs of M10/70 or M10/90 bolts. Attachment close to the axle of the trailer ensures neglectable change in the center of gravity of the trailer, the up-swept rear edge ensures good clearence (about 17cm above ground by Cobra trailer). Maximum weight of stored equipment in the drawer: 32kg, max permitted speed 100km/h.

Original source:
https://www.gliderpilotshop.com/trailer-drawer.html
Information
Publication date
2022-12-30
Section
Gliders
Category
Accessories
Manufacturer
Views
391
Favorites
0
