Price upon request
Selling. New

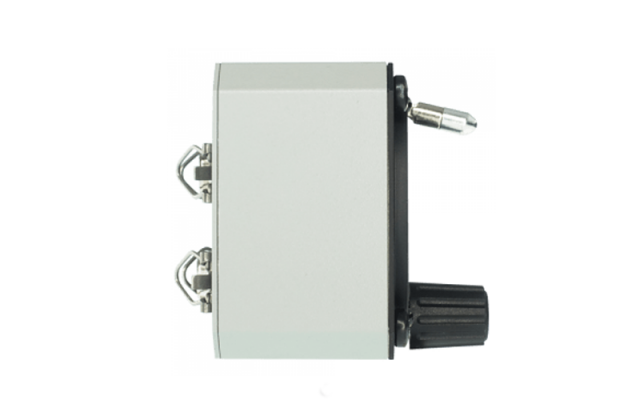

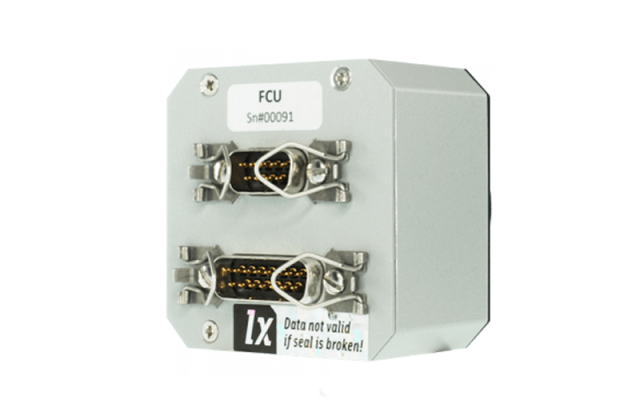

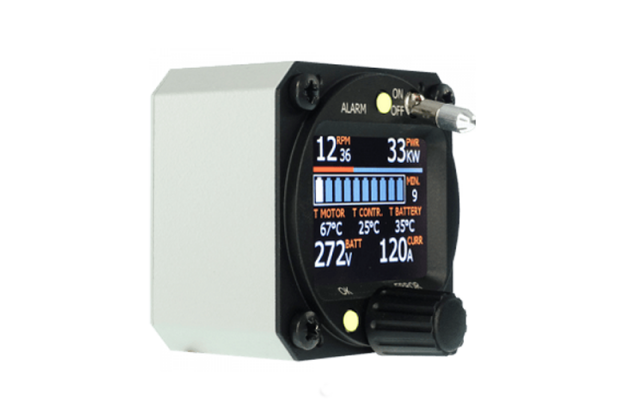

FES Unit. Front Electric Sustainer Control Unit.
Glider Accessory LX NAV
Description
The FES control unit has full control over electric motor and battery management. The device has been custom developed for the LZ Design company.
Specifications
Input
1 RPM input
2 LED inputs
1 analog input for measuring current
1 analog input for measuring voltage
1 RS-232 input for firmware update
1 input for the canopy open switch
Output
1 digital output for BRAKE
1 analog output for POWER
Hardware
1 ON/OFF switch
1 Rotary and push button
QVGA sunlight readable LCD
Consumption approx. 100mA
Size and Weight
Standard 57mm hole
60mm x 60mm x 25 mm
Weight only 157 grams
Original source:
https://gliding.lxnav.com/products/fes-control-unit/
Specifications
Input
1 RPM input
2 LED inputs
1 analog input for measuring current
1 analog input for measuring voltage
1 RS-232 input for firmware update
1 input for the canopy open switch
Output
1 digital output for BRAKE
1 analog output for POWER
Hardware
1 ON/OFF switch
1 Rotary and push button
QVGA sunlight readable LCD
Consumption approx. 100mA
Size and Weight
Standard 57mm hole
60mm x 60mm x 25 mm
Weight only 157 grams
Original source:
https://gliding.lxnav.com/products/fes-control-unit/
