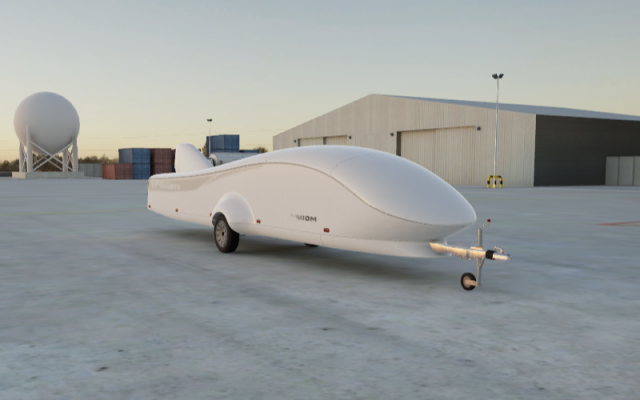

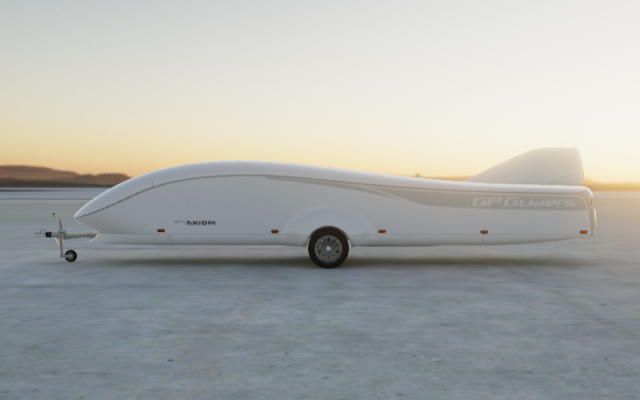

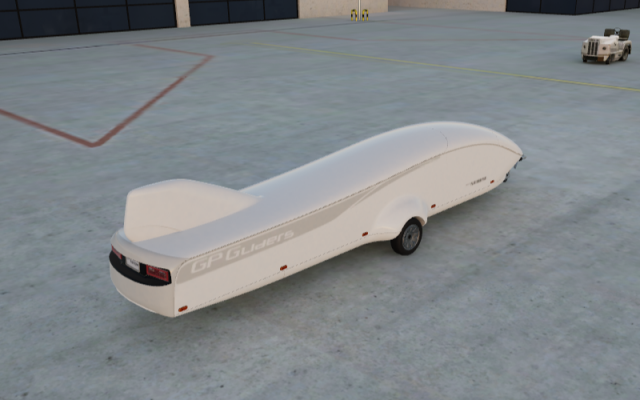

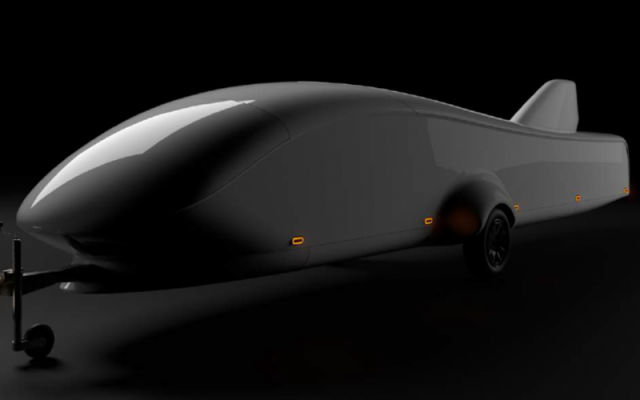

is a premium-design transportation trailer designed and developed by GPG, dedicated primarily for use with the GP 14 VELO and GP 15 JETA ships, in addition it is available with different internal furniture systems to accomodate and support many other types of gliders as well. It offers very attractive, complementary package to the gliders, both in terms of aesthetics and functionality. Its unique construction provides easy and convenient, parallel storage and effortless assembly of one fuselage and two wing sets (13,5 + 15 m).

It utilizes lightweight, compact two-piece glass-epoxy composite construction of the storage box, supported by light and rigid full-length steel wheel frame with anti-corrosive protection coating. Streamlined shape contribute to very low towing drag, as well as good cross-wind resistance and high stability in all driving conditions, reducing fuel consumption and driver’s fatigue.
The standard equipment consists only of high quality AL-KOTM chassis parts and components, with standard overrun wheel brakes, as well as all-LED exterior lighting.

The furniture of the trailer enables single-man operations during rigging, de-rigging and maintenance of the glider. The vast front boot space and additional storage compartments allow the users to take everything needed to the airfield, for a longer trip or even vacation. Among its original features there is e.g. SPSP (Sustainable Power Supply Package) including solar panels on top of the box and buffer Li-Ion battery for effectively independent recharges of glider traction battery from renewable source and water tank with electric pump for backache free airfield fill-ups and others.

DIMENSIONS & WEIGHTS
Length total/box 30,45/27,99 ft 9 280/8 530 mm
Width total/box 6,27/4,63 ft 1 910/1 430 mm
Height total/box 6,23/4,23 ft 1 900/1 380 mm
